Relax-A-Mist® Steam Equipment Specifications:

Max Cubic Feet : 175

OPTIONAL ACCESSORIES:

Time & Temperature Control Electronic digital control with time and temperature settings and handheld remote. Drain Valve - Manual, ¾” Drain Valve - Automatic, Electronic, ¾” Steam Nozzle Guard, Acrylic Steam Nozzle Drip Tray, Acrylic
*See Pricing Guides for additional accessories and options

AVAILABLE FINISHES:Chrome Brushed Nickel 24K Gold Venetian Bronze

*Custom finishes may be ordered, please enquire for details and pricing.

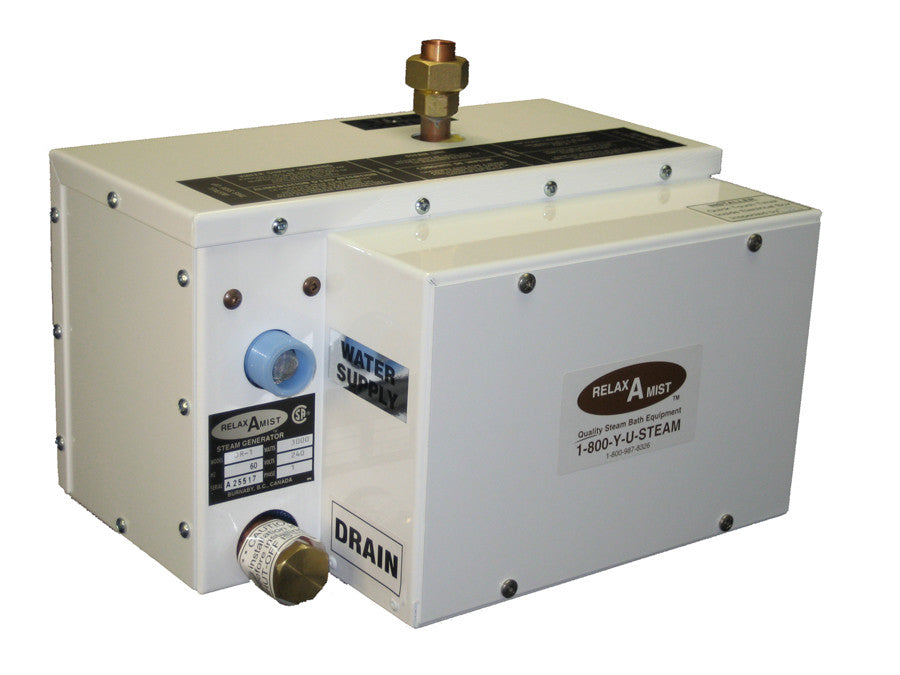

Supply and install one only CSA approved, pre-tested,  automatic,  electric, Relax-A-Mist® steam bath generator complete with internal switching and digital control.  See our pricing guides for part  numbers and available finishes and controls.
1.  The steam unit shall be a Relax-A-Mist® model JR-2 rated at 240 Volts AC, 60 hz, 1 Phase power.
2.  The appliance shall be assembled and wired at the factory, ready for the connection of power supply and ground wires, control switch, water supply, steam line piping, and any optional accessories.
3.  The appliance shall be supplied complete with:
 a)  A 16 gauge powder coated steel outer jacket with: ▪  1 inch of insulation surrounding the inner copper boiling tank ▪  separate boiling tank, supply voltage and low voltage compartments ▪  bonding to a copper grounding lug
 b)  The water boiling tank is to be: ▪  made of a non-ferrous copper material that is electrolytically compatible with copper piping, and the electric heater element fastened to the steel outer jacket with legs ▪  a dual chamber for boiling and controlling the water level ▪  bonded to a copper grounding lug
 c)  A 240 Volt copper sheath immersion heater element, mounted in a copper pan assembly with an element thermal protection device.
 e)  An electronic water level control device with no moving parts inside the boiling tank compartments.
 f)  A low water heater cutoff.
 g)  One only, water resistant digital timer switch (plug and play) with numeric display, maximum 60 minutes, counts down to 1 minute and automatically turns off.  Includes an 22 gauge solid copper wire plug and play cord set, bonded to a copper grounding lug.
 h)  All controls protected by a transformer and 1 amp fuses.
 i)  All  non-current carrying metal parts are bonded to a copper grounding lug.
